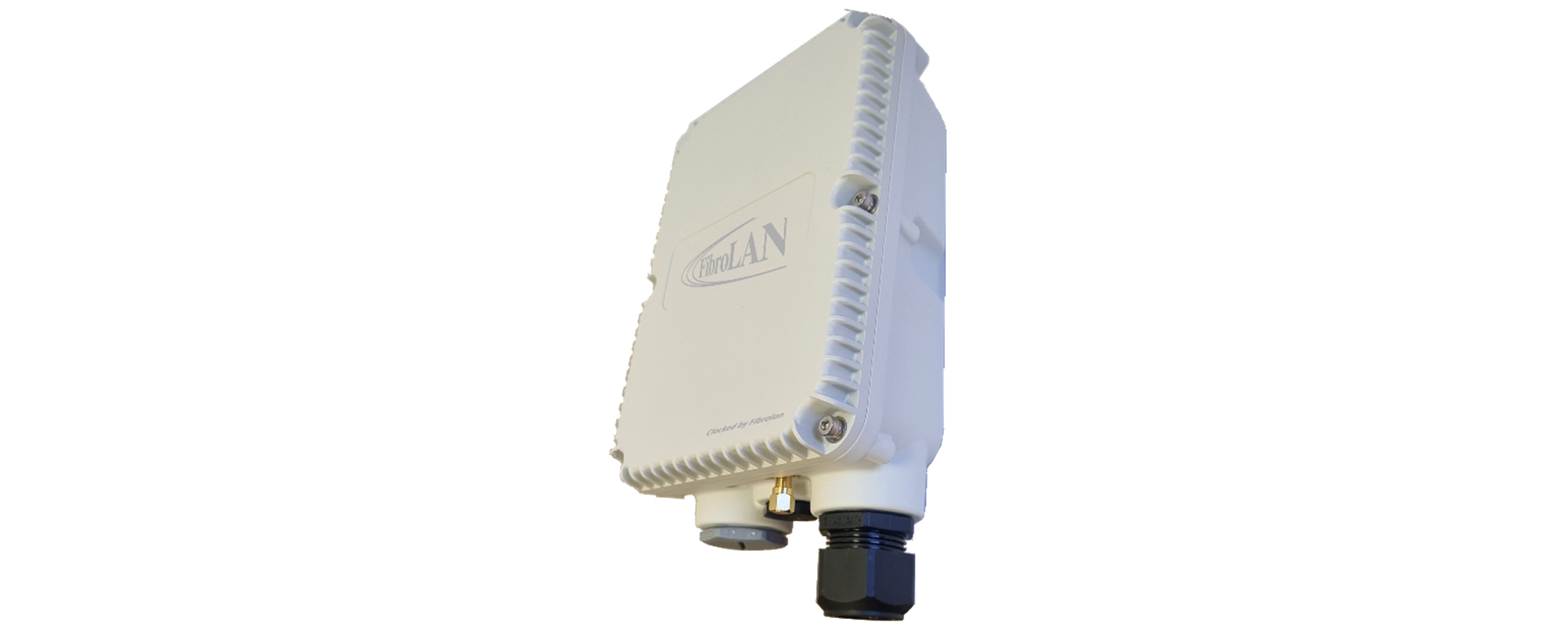

xFalcon-LRX

Interfaces & Indicators

• Ethernet:
  • 1 x 1G (SFP)
  • 1 x 10/100/1000BaseT (RJ45, PoE)
• Supported SFP:
  • MMF, SMF, SFS
• Sync & Timing:
  • All Ethernet ports support PTP, SyncE and NTP
• LEDs
  •  System status

PTP/IEEE1588

• Functions:
  • Grandmaster
  • Boundary Clock
  • Ordinary Clock
  • Transparent Clock
• Profiles supported:
  • Telecom Frequency (G.8265.1)
  • Telecom Phase (G.8275.1, G.8275.2)
  • Default (IEEE1588)
  • Custom
• Modes supported:
  • 1 and 2 step
  • L2 Multicast
  • L3/UDP Unicast/Multicast
  • Mixed transport modes
  • E2E and P2P delay
  • VLAN tagging
• Slave capacity:
  • Up to 128 Unicast @ full packet rate
  • Support for max packet rates for Sync, DelReq, Announce
• HW timestamping

Other Timing & Sync Features

• SyncCenter
• SyncController
• GNSS:
  • 32 channels
  • Multi-constellation (GPS, GLONASS, Galileo, Beidou, QZSS)
  • Integrated active antenna
  • Optional dual band receiver
• Synchronous Ethernet (SyncE):
  • G.8261, G.8262
  • ESMC (G.8264)
•  NTP
  • Client
  • Server
• Local clock:

  • Built-in Stratum 3E clock

Quality of Service

• Classification based on L1-L4 information
• Ingress policing per port/queue
• Hierarchical shaping and scheduling
• Priority based flow control (802.1Qbb)
• Scheduling: Strict, DWRR, hybrid
• 4 drop precedence levels
• WRED and tail drop for CA
• P-bit and DSCP remarking
• Storm control: UC, MC, BC
• QoS Control Lists

Protection

• Link aggregation: static or LACP
• Linear (path) protection: G.8031
• Ring protection: G.8032v2
• Spanning tree: STP, RSTP, MSTP
• Loop protection

OAM & Diagnostics

• IEEE802.3ah link OAM
• IEEE802.1ag CFM
• Ping (IPv4/v6)
• Traceroute (Ipv4/v6)
• Throughput metering
• SFP diagnostics (SFF-8472)
• Traffic mirroring and remote mirroring
• sFlow

Management

• Interfaces:
  • CLI: Console, Telnet, SSH
  • SNMP: v1/v2c/v3, extensive MIBs
  • Web: HTTP/HTTPS
  • Management VLAN
  • IPv6 management
• Authentication:
  • RADIUS, TACACS+
  • Multiple local users
  • User access levels (15)
  • Management ACLs
  • 802.1x (port/MAC based)
• DHCP client, relay, server, snooping
• Link discovery: LLDP, LLDP-MED, CDP snooping
• Netconf/YANG support
• CPU sub-system:
  • Single core, 600MHz, ARM
  • 1GB DDR, up to 32GB flash memory
• Operations:
  • Remote System Update (TFTP or Web)
  • Configuration upload/download (TFTP or Web)
  • Text based config files
• Alarms:
  • SNMP traps
  • Syslog (internal and remote server)
  • CLI events
• Remote temperature reading & alarm
• RMON
• Multi-tenant Cloud Call home service:
  • Zero Touch Provisioning
  • Device configuration and SW image
  • Collection of events and status from device

Power & Environmental

• Power Supply:
  • Input Power: PoE+ (802.3at Type-2)
• Power consumption:
  • Maximum: <15W
  • Typical: <10W
• Operating temperature: -40°C ÷ +65°C (-40°F ÷ 149°F)
• Storage temperature: -40°C ÷ +80°C (-40°F ÷ 176°F)
• Humidity: 10-90%, non-condensing

Physical

• Dimensions (HxWxD):
  • 200x130x80 mm (7.87x5.12x3.15 inch)
•  Mounting:
  • Pole
  • Wall
• Weight: ~1.2Kg (2.65 lb)
• Accessories:
  • Pole/Wall mounting kit (optional)

Regulatory & Compliance

• Safety:
  • IEC EN60950-1
• CE
• RoHS
• EMC:
  • FCC CFR 47 part 15, subpart B, Class A
  • EN 300 386 V1.3.3: 05
