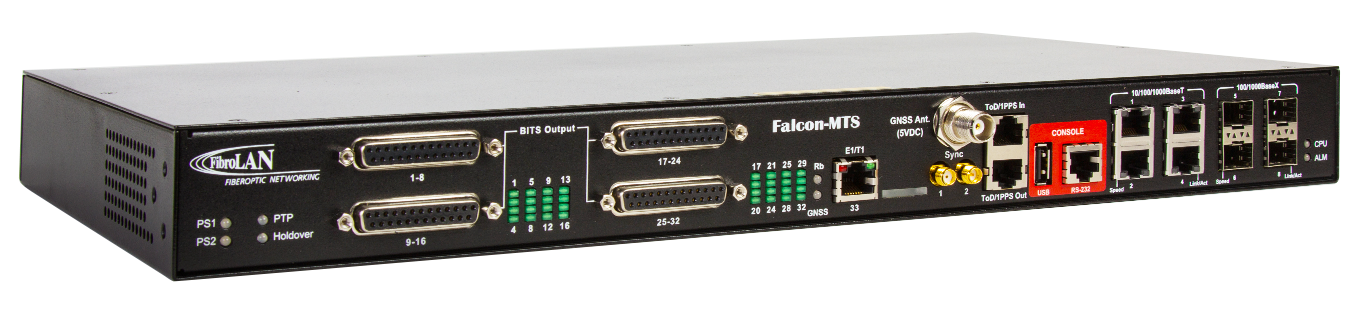

Falcon-MTS

Core/Edge high capacity PTP Grandmaster, NTP server and BITS Clock, with multi source operation and Rubidium based holdover



The Falcon-MTS is designed for synchronization and distribution of frequency, phase and time over the packet-based networks for applications demanding highly accurate and stable reference signal.

This system can operate on multiple clock references for redundancy and high availability, based on both logical and physical sources, while distributing timing through these interfaces.

Having an integrated Ethernet switch in the system provides high capacity, processing flexibility and high level of security and robustness.

Key features
Specification
Ordering Information
Downloads
  • High capacity, HW based PTP Grandmaster and BC
  • BITS Clock with high fan out
  • High performance GNSS receiver for Stratum 1 traceable timing
  • Field replaceable Rubidium module for excellent holdover performance
  • 8 Gigabit Ethernet ports (RJ45 and SFP, SyncE enabled) for maximum deployment flexibility
  • Integrated NTP server
  • SyncCenter GUI for easy system operation
  • ToD/1PPS (RJ45/RS422) interfaces
  • Clock/1PPS inputs/outputs (SMA) for direct external synchronization
  • Compact design (1RU), low power consumption
  • Comprehensive front panel indications

Interfaces & Indicators

  • 4 x 10/100/1000BaseT (RJ45)
  • 4 x 100/1000BaseX (802.3z/SFP)
    • Supported SFPs: MM, SM, SFS, CWDM, DWDM
  • 1 x RS232 (RJ45) Console
  • 32 x BITS output (E1/T1, 4 x DB25)
  • 1 x BITS input/output
  • 1 x ToD/1PPS input (RJ45), 1 x ToD/1PPS output (RJ45)
  • 1 x GNSS active antenna (TNC, 5VDC)
  • 2 x 10MHz/1PPS input/output (SMA)
  • LEDs:
    • Power (per PS)
    • Link/Activity (per GE port)
    • Speed (per GE port)
    • BITS active (per E1/T1)
    • PTP, Holdover
    • GNSS, Rb (Rubidium module)
    • CPU, Alarm

Architecture & Forwarding

  • Flow-based forwarding
  • Performance: wire-speed, on all ports, all frame sizes
  • Switching fabric: 20Gbps, non-blocking
  • MTU: 9.6K bytes
  • 3x Flow Control
  • 1Q VLANs: 4K concurrent
  • Provider bridging: 802.1ad (Q-in-Q)
  • L1-L4 ACLs
  • IGMPv3 snooping
  • MLD snooping

Quality of Service

  • Classification based on L1-L4 info
  • Ingress policing per flow (MEF BW profiles)
  • Egress shaping
  • QoS Control Lists

Protection

  • Link aggregation: static or LACP
  • Linear protection: G.8031
  • Ring protection: G.8032v2
  • Fault propagation
  • Spanning tree: STP, RSTP, MSTP
  • Loop protection

OAM & Diagnostics

  • IEEE802.3ah link OAM
  • IEEE802.1ag CFM
  • ITU-T Y.1731 PM
  • RFC2544 traffic generator & analyzer (HW based)
  • L2/L3 loopbacks with MAC/IP swap
  • Micro Burst Detection (MBD) with logging and reporting
  • Traffic mirroring
  • Remote mirroring
  • sFlow
  • Throughput metering

Management


  • CLI: Console (RS232), Telnet, SSH1/2
  • SNMP: v1/v2c/v3, extensive MIBs
  • Web: HTTP/HTTPS
  • Management VLAN
  • IPv6 management
  • RADIUS, TACACS+
  • 1x (port/MAC based)
  • DHCP client & relay (incl. option 82)
  • Link discovery: LLDP
  • Integrated NTP client and Server

Synchronization


  • Designed to deliver Stratum 1 traceable timing
  • Interfaces:
    • Global Navigation Satellite System (GNSS) receiver
    • BITS – T1, ESF/SSM; E1, CRC4/SSM
    • Synchronous Ethernet on all GE interfaces
    • IEEE1588-2008 (PTP):
      • Ordinary Clock (master, slave)
      • Transparent Clock
      • Boundary Clock
    • 2 x SMA connectors for 1PPS/Clk, in/out
    • ToD/1PPS, RS422, RJ45
  • G.8261, G.8262
  • ESMC (G.8264)
  • Holdover:
    • Built in OCXO for Stratum 3E
    • Optional Rb module for Stratum 2 (>7 days)

Power & Environmental

  • Dual, redundant, hot swappable power supplies
  • AC/DC: 100-240VAC, 50/60Hz or 125VDC
  • DC: 20-60VDC, ST connector
  • Typical Power consumption <30W
  • Extended Operating temperature:
    • Standard: -10°C ÷ +50°C (14°F ÷ 122°F)
    • Extended: -40°C ÷ +65°C (-40°F ÷ 149°F)
  • Storage temperature: -40°C ÷ +80°C (-40°F ÷ 176°F)
  • Humidity: 10-90%, non-condensing



Model

Part #

Description

Falcon-MTS/A

7054

Master Timing System, 4x10/100/1000BaseT ports, 4x1000BaseX SFP ports, 32xBITS outputs, Rb module (RBCM-x) ready, 1 removable AC power supply (FPS10012/A)

Falcon-MTS/D

7055

Master Timing System, 4x10/100/1000BaseT ports, 4x1000BaseX SFP ports, 32xBITS outputs, Rb module (RBCM-x) ready, 1 removable DC power supply (FPS10012/D)

Falcon-MTS/SWL/PTP-1

7056

SW license for enhanced capacity PTP Master

RBCM-1

7110

Rubidium Clock Module, type 1

FPS10012/A

7106

Redundant power supply, AC/DC (100-240VAC/125VDC), 50 to 60Hz, 100W

FPS10012/D

7107

Redundant power supply, DC (20-60V), 100W



Specifications are subject to change w/o prior notice

Note: for a complete list of available Falcon models, please contact Fibrolan

Relevant Documents
Datasheet
