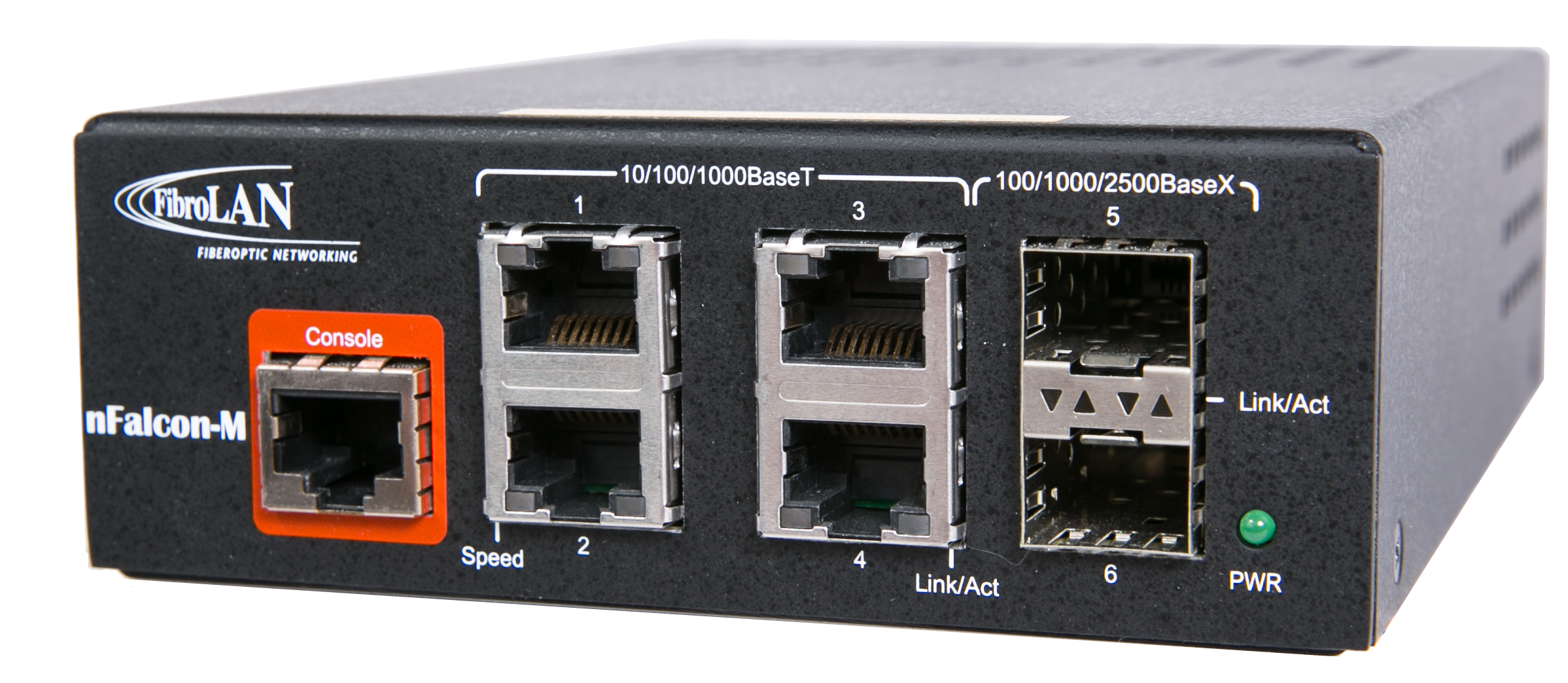

nFalcon-M4

Ultra-compact, cost effective, 2.5Gbps enabled service demarcation

Extending your network with multi-gigabit services is challenging from both operational and financial aspects. The nFalcon-M (nano Falcon M) creates an intermediate step between 1G and 10G, while delivering full performance and monitoring tools, to address this challenge.

M Class, 3^rd generation, Falcon
Full set of MEF compliant services
2.5Gbps support on uplinks
Advanced QoS and service level traffic management
Complete OAM toolbox (802.1ag, Y.1731, RFC2544, Y.1564)
Temperature hardened options
Layer 3 static routing support
Advanced protection mechanisms for link, path, and ring service resilience
Compact, low power, Carrier grade, fan-less design

Interfaces & Indicators	2 x 100/1000/2500BaseX (SFP) 4 x 10/100/1000BaseT (RJ45)
Architecture & Forwarding	256MB RAM, 256MB flash memory Flow-based forwarding Performance: wire-speed, on all ports, all frame sizes Switching fabric: 14Gbps, non-blocking MTU: 10K bytes MAC table: 8K addresses VLANs: 4K concurrent Provider bridging: 802.1ad (Q-in-Q) L1-L4 ACLs IGMPv3 snooping MLD snooping
Quality of Service	Classification based on L1-L4 information Ingress policing Hierarchical queuing/scheduling Hierarchical shaping Priority-based flow control (802.1Qbb) 4 drop precedence levels w/ WRED and tail drop for CA Storm control: UC, MC, BC QoS Control Lists
Protection	Link aggregation: static or LACP Linear protection: G.8031 Ring protection: G.8032v2 Spanning tree: STP, RSTP, MSTP Loop protection
OAM & Diagnostics	IEEE802.3ah link OAM IEEE802.1ag CFM (HW assisted) ITU-T Y.1731 PM RFC2544 traffic generator & analyzer (up to wire speed) L2/L3 loopbacks w/ MAC/IP swap Traffic mirroring and remote mirroring sFlow
Management	CLI: Console (RS232), Telnet, SSH1/2 SNMP: v1/v2c/v3, extensive MIBs, trap profiles Web: HTTP/HTTPS Management VLAN IPv6 management RADIUS, TACACS+ 1x (port/MAC based) DHCP client & relay (incl. option 82) Link discovery: LLDP Remote System Update (TFTP or Web) Configuration upload/download (TFTP or Web) Text based config files Integrated into the NetACE NMS
Power & Environmental	Internal Power Supply 36-72VDC Maximum: <12W; typical: <10W Operating temperature up to: -40°C ÷ +65°C (-40°F ÷ 149°F)
Physical	Dimensions (HxWxD): 42x120x150mm (1.65x4.72x5.90 inch) Weight: ~0.4Kg (0.88 lb) Mounting: Desktop/Rack /Wall

Model	Part #	Description
nFalcon-M4/A	7132	Compact demarcation device, 2x100/1000/2500BaseX (SFP), 4x10/100/1000BaseT, internal AC power supply
nFalcon-M4/D	7133	Compact demarcation device, 2x100/1000/2500BaseX (SFP), 4x10/100/1000BaseT, internal DC power supply

Notes:

- Specifications are subject to change w/o prior notice
- For a complete list of available Falcon models, please contact Fibrolan
