µFalcon-ST/G

µFalcon-ST/G

Compact edge timing master with converged infrastructure transport

The µFalcon-ST/G is designed to address the growing challenges of Timing & Synchronization, especially in LTE/5G mobile networks. Its ability to flexibly deliver timing at the edge enables solid and optimized performance of the network.

Coupled with strong transport capabilities, supporting both legacy and packet technologies, the µFalcon-ST/G provides the most robust solution foraggregation of 2G through LTE base stations and smooth migration between these technologies.

  • Edge PTP Grandmaster (can also serve as TC or BC), supporting all common modes of operation
  • Integrated GNSS receiver, with multi-constellation support
  • SyncCenter for maximum flexibility, control and visibility for timing
  • SyncE on all GE ports, with multiple sources and priorities
  • MEF compliant services, with flexible mapping of the user traffic into Ethernet flows
  • Circuit Emulation Services (SAToP, CESoPSN, MEF8) with flexible and advanced synchronization options
  • Robust bandwidth control mechanism and Service Level Agreement (SLA) monitoring per Ethernet flow starting at customer premises
  • Complete Ethernet OAM toolbox based on IEEE 802.1ag, ITU-T Y.1731 and RFC2544 for Opex reduction.
  • Advanced high-speed protection mechanisms for link, path, and ring service resiliency

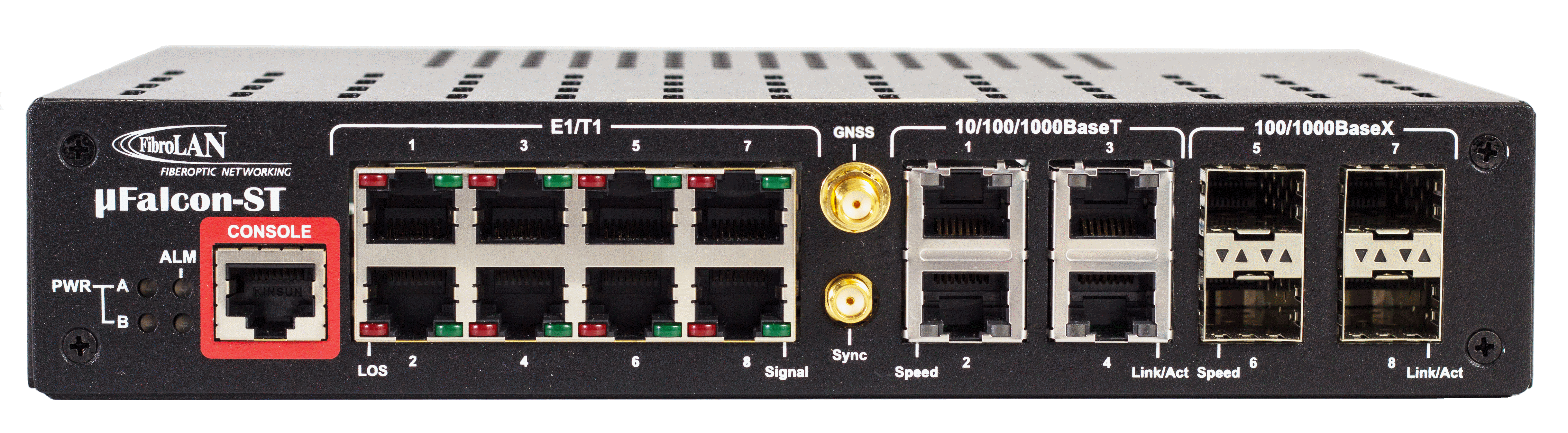

Interfaces & Indicators
  • 4 x 10/100/1000BaseT (RJ45)
  • 4 x 100BaseFX/1000BaseX (SFP)
  • 4/8 x E1/T1/J1 (RJ48)

Architecture & Forwarding
  • Flow-based forwarding
  • Performance: wire-speed, on all ports, all frame sizes
  • Switching fabric: 20Gbps, non-blocking
  • MTU: 9.6K bytes
  • 802.3x Flow Control
  • 802.1Q VLANs: 4K concurrent
  • Provider bridging: 802.1ad (Q-in-Q)
  • L1-L4 ACLs
  • IGMPv3 snooping
  • MLD snooping

Quality of Service
  • Classification based on L1-L4 info
  • Ingress policing per flow
  • Egress shaping
  • Storm control: UC, MC, BC

Circuit Emulation Services
  •  4/8 x E1/T1/J1 interfaces
  • RJ48, 120/100ohm
  • SAToP, CESoPSN*, MEF8 support
  • Multiple and flexible encapsulation over Ethernet & IP/MPLS
  • Flexible synchronization schemes (adaptive, line, 1588 and more)

Protection
  • Link aggregation: static or LACP
  • Linear protection: G.8031
  • Ring protection: G.8032v2
  • Fault propagation
  • Spanning tree: STP, RSTP, MSTP
  • Loop protection

OAM & Diagnostics
  • IEEE802.3ah link OAM
  • IEEE802.1ag CFM
  • ITU-T Y.1731 PM
  • RFC2544 traffic generator & analyzer (HW based)
  • L2/L3 loopbacks with MAC/IP swap
  • Micro Burst Detection (MBD) with logging and reporting
  • Traffic mirroring
  • Remote mirroring
  • sFlow
  • Throughput metering

Management


  • CLI: Console (RS232), Telnet, SSH1/2
  • SNMP: v1/v2c/v3, extensive MIBs
  • Web: HTTP/HTTPS
  • Management VLAN
  • IPv6 management
  • RADIUS, TACACS+
  • 1x (port/MAC based)
  • DHCP client & relay (incl. option 82)
  • Link discovery: LLDP
  • Integrated NTP client and Server

Synchronization


  • Synchronous Ethernet
  • G.8261, G.8262
  • ESMC (G.8264)
  • 1 x SMA connectors for 1PPS/Clk (in/out)
  • IEEE1588-2008 (PTP):
    • Ordinary Clock (master, slave)
    • Transparent Clock
    • Boundary Clock

Power & Environmental
  • Internal power supply: 20-60VDC, dual feed
    • Typical: <20W
  • Passive cooling (fan-less design)
  • Operating temperature: up to -40°C ÷ +65°C (extended range)

Model

Part #

Description

µFalcon-ST8/SE/G/D

7094

Edge Timing Master, 4xUNI, 10/100/1000BaseT ports, 2xUNI SFP ports, 8xE1/T1 ports, 2xNNI SFP ports, SyncE (precision timing) support, integrated GNSS receiver, internal DC (20-60VDC) dual feed power supply

µFalcon-ST8/SE/D/G/ET

7095

Edge Timing Master, 4xUNI, 10/100/1000BaseT ports, 2xUNI SFP ports, 8xE1/T1 ports, 2xNNI SFP ports, SyncE (precision timing) support, integrated GNSS receiver, internal DC (20-60VDC) dual feed power supply, ext. temp. range (-40°C ÷ +65°C)

µFalcon-ST8/SE/G/HOC/D

7088

Edge Timing Master, 4xUNI, 10/100/1000BaseT ports, 2xUNI SFP ports, 8xE1/T1 ports, 2xNNI SFP ports, SyncE (precision timing) support, integrated GNSS receiver, high stability OCXO, internal DC (20-60VDC) dual feed power supply

FPA40

7108

AC (100-240V) to DC (48V) power adapter, 40W



Notes:

- Specifications are subject to change w/o prior notice
- GNSS accessories (antenna, cable, etc.) are available – contact for details
- For a complete list of available Falcon models, please contact Fibrolan
