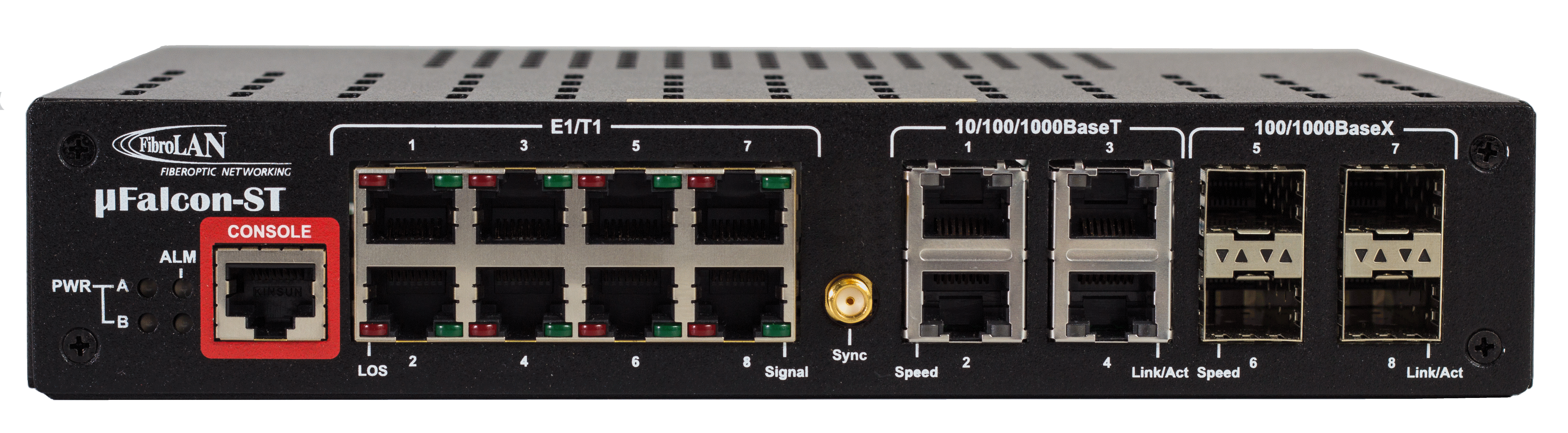

µFalcon-ST

Mobile backhaul and access over converged, high-speed infrastructure (FMC) in one device

The µFalcon-ST (micro Falcon-ST) is designed for growing complexity and number of scenarios of mobile networks backhauling. With comprehensive support for circuit emulation services, coupled with advanced timing features, the µFalcon-ST provides the ultimate edge solution for 2G through LTE base stations and smooth migration between these technologies.

  • MEF compliant services, with flexible mapping of the user traffic into Ethernet flows
  • Circuit Emulation Services (SAToP, CESoPSN, MEF8) with flexible and advanced synchronization options
  • Robust bandwidth control mechanism and Service Level Agreement (SLA) monitoring per Ethernet flow starting at customer premises
  • Complete Ethernet OAM toolbox based on IEEE 802.1ag, ITU-T Y.1731 and RFC2544 for Opex reduction.
  • Extensive Precision Timing Support: SyncE, PTP , adaptive, BITS, etc.
  • Advanced high-speed protection mechanisms for link, path, and ring service resiliency
  • Unique Micro-burst detection (MBD) technology for microsecond granular SLA monitoring

Interfaces & Indicators

  • 4 x 10/100/1000BaseT (RJ45)
  • 4 x 100BaseFX/1000BaseX (SFP)
  • 4/8 x E1/T1/J1 (RJ48)

Architecture & Forwarding

  • Flow-based forwarding
  • Performance: wire-speed, on all ports, all frame sizes
  • Switching fabric: 20Gbps, non-blocking
  • MTU: 9.6K bytes
  • 802.3x Flow Control
  • 802.1Q VLANs: 4K concurrent
  • Provider bridging: 802.1ad (Q-in-Q)
  • L1-L4 ACLs
  • IGMPv3 snooping
  • MLD snooping

Quality of Service

  • Classification based on L1-L4 info
  • Ingress policing per flow
  • Egress shaping
  • Storm control: UC, MC, BC

Circuit Emulation Services

  •  4/8 x E1/T1/J1 interfaces
  • RJ48, 120/100ohm
  • SAToP, CESoPSN*, MEF8 support
  • Multiple and flexible encapsulation over Ethernet & IP/MPLS
  • Flexible synchronization schemes (adaptive, line, 1588 and more)

Protection

  • Link aggregation: static or LACP
  • Linear protection: G.8031
  • Ring protection: G.8032v2
  • Fault propagation
  • Spanning tree: STP, RSTP, MSTP
  • Loop protection

OAM & Diagnostics

  • IEEE802.3ah link OAM
  • IEEE802.1ag CFM
  • ITU-T Y.1731 PM
  • RFC2544 traffic generator & analyzer (HW based)
  • L2/L3 loopbacks with MAC/IP swap
  • Micro Burst Detection (MBD) with logging and reporting
  • Traffic mirroring
  • Remote mirroring
  • sFlow
  • Throughput metering

Management


  • CLI: Console (RS232), Telnet, SSH1/2
  • SNMP: v1/v2c/v3, extensive MIBs
  • Web: HTTP/HTTPS
  • Management VLAN
  • IPv6 management
  • RADIUS, TACACS+
  • 1x (port/MAC based)
  • DHCP client & relay (incl. option 82)
  • Link discovery: LLDP
  • Integrated NTP client and Server

Synchronization


  • Synchronous Ethernet
  • G.8261, G.8262
  • ESMC (G.8264)
  • 1 x SMA connectors for 1PPS/Clk (in/out)
  • IEEE1588-2008 (PTP):
    • Ordinary Clock (master, slave)
    • Transparent Clock
    • Boundary Clock

Power & Environmental

  • Internal power supply: 20-60VDC, dual feed
    • Typical: <20W
  • Passive cooling (fan-less design)
  • Operating temperature: up to -40°C ÷ +65°C (extended range)

Model

Part #

Description

μFalcon-ST4/SE/D

7090

Multi Service NTU, 4xUNI,10/100/1000BaseT ports, 2xUNI SFP ports, 4xE1/T1 ports, 2xNNI SFP ports, SyncE (precision timing) support, internal DC (20-60VDC) dual feed power supply

μFalcon-ST4/SE/D/ET

7091

Multi Service NTU, 4xUNI,10/100/1000BaseT ports, 2xUNI SFP ports, 4xE1/T1 ports, 2xNNI SFP ports, SyncE (precision timing) support, internal DC (20-60VDC) dual feed power supply, extended temperature range (-40°C ÷ +65°C)

µFalcon-ST8/SE/D

7092

Multi Service NTU, 4xUNI,10/100/1000BaseT ports, 2xUNI SFP ports, 8xE1/T1 ports, 2xNNI SFP ports, SyncE (precision timing) support, internal DC (20-60VDC) dual feed power supply

µFalcon-ST8/SE/D/ET

7093

Multi Service NTU, 4xUNI,10/100/1000BaseT ports, 2xUNI SFP ports, 8xE1/T1 ports, 2xNNI SFP ports, SyncE (precision timing) support, internal DC (20-60VDC) dual feed power supply, extended temperature range (-40°C ÷ +65°C)



Notes:

- Specifications are subject to change w/o prior notice
- For a complete list of available Falcon models, please contact Fibrolan
