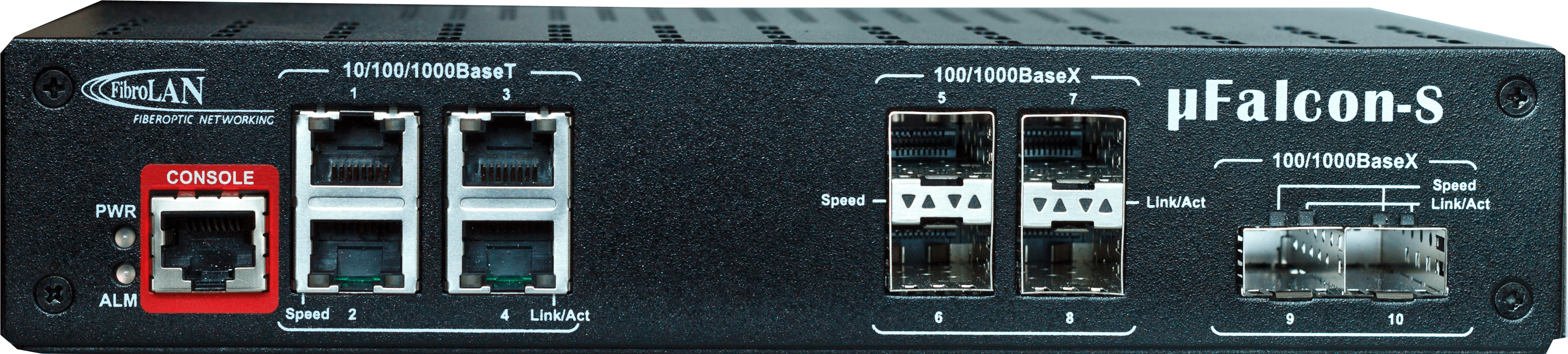

µFalcon-S

Compact, high-performance Carrier Ethernet demarcation and local aggregation device with high port density, for advanced service delivery

The µFalcon-S (micro Falcon-S) offers wire-speed Carrier Ethernet services delivery, comprehensive SLA enforcement and monitoring tools, and an extensive set of management functions over an Intuitive web interface. This device is equipped with a total of 10 Gigabit Ethernet ports (6 SFP and 4 Copper) and is designed for reliable, high availability operation.

Key features
Specification
Ordering Information
Downloads
  • MEF CE2.0 compliant services, with flexible mapping of user traffic into Ethernet flows
  • Robust bandwidth control mechanism and Service Level Agreement (SLA) monitoring per Ethernet flow starting at customer premises
  • Complete Ethernet OAM toolbox based on IEEE 802.1ag, ITU-T Y.1731 and RFC2544 for Opex reductions
  • Unique Micro-burst detection (MBD) technology for microsecond granular SLA monitoring
  • Advanced high-speed protection mechanisms for link, path, and ring service resiliency
  • High accuracy 1588v2 TC support for LTE backhaul applications

Interfaces & Indicators

  • 4 x 10/100/1000BaseT (RJ45)
  • 4 x 100/1000BaseX (802.3z/SFP)
  • 2 x 100/1000BaseX (802.3z/SFP, Uplink)

Architecture & Forwarding

  • Flow-based forwarding
  • Performance: wire-speed, on all ports, all frame sizes
  • Switching fabric: 20Gbps, non-blocking
  • MTU: 9.6K bytes
  • 3x Flow Control
  • 1Q VLANs: 4K concurrent
  • Provider bridging: 802.1ad (Q-in-Q)
  • L1-L4 ACLs
  • IGMPv3 snooping
  • MLD snooping

Quality of Service

  • Classification based on L1-L4 info
  • Ingress policing per flow (MEF BW profiles)
  • Egress shaping
  • QoS Control Lists

Protection

  • Link aggregation: static or LACP
  • Linear protection: G.8031
  • Ring protection: G.8032v2
  • Fault propagation
  • Spanning tree: STP, RSTP, MSTP
  • Loop protection

OAM & Diagnostics

  • IEEE802.3ah link OAM
  • IEEE802.1ag CFM
  • ITU-T Y.1731 PM
  • RFC2544 traffic generator & analyzer (HW based)
  • L2/L3 loopbacks with MAC/IP swap
  • Micro Burst Detection (MBD) with logging and reporting
  • Traffic mirroring
  • Remote mirroring
  • sFlow
  • Throughput metering

Management


  • CLI: Console (RS232), Telnet, SSH1/2
  • SNMP: v1/v2c/v3, extensive MIBs
  • Web: HTTP/HTTPS
  • Management VLAN
  • IPv6 management
  • RADIUS, TACACS+
  • 1x (port/MAC based)
  • DHCP client & relay (incl. option 82)
  • Link discovery: LLDP
  • Integrated NTP client and Server

Synchronization


  • Synchronous Ethernet (SE models)
  • 8261, G.8262 (SE models)
  • ESMC (G.8264, SE models)
  • Built-in Stratum 3 clock (SE models)
  • 2 x SMA connectors for 1PPS/Clk, in/out (SE models)
  • IEEE1588-2008 (PTP):
    • Ordinary Clock (master, slave)
    • Transparent Clock
    • Boundary Clock

Power & Environmental

  • Internal power supply
  • AC/DC: 100-240VAC, 50/60Hz or 125VDC
  • DC: 20-60VDC, ST connector
    • Typical: <12W
  • Passive cooling (fan-less design)
  • Operating temperature: up to -40°C ÷ +65°C (extended range)

Specifications are subject to change w/o prior notice





Model

Part#

Description

μFalcon-S

7066

Multi Service NTU, 4xUNI,10/100/1000BaseT ports, 4xUNI SFP ports, 2xNNI SFP ports, internal AC/DC (100-240VAC/125VDC) power supply

μFalcon-S/D

7067

Multi Service NTU, 4xUNI,10/100/1000BaseT ports, 4xUNI SFP ports, 2xNNI SFP ports, internal DC (20-60VDC) power supply

μFalcon-S/ET

7070

Multi Service NTU, 4xUNI,10/100/1000BaseT ports, 4xUNI SFP ports, 2xNNI SFP ports, internal AC/DC (100-240VAC/125VDC) power supply, extended temperature range (-40°C ÷ +65°C)

μFalcon-S/D/ET

7071

Multi Service NTU, 4xUNI,10/100/1000BaseT ports, 4xUNI SFP ports, 2xNNI SFP ports, internal DC (20-60VDC) power supply, extended temperature range (-40°C ÷ +65°C)

 Note: for a complete list of available Falcon models, please contact Fibrolan
