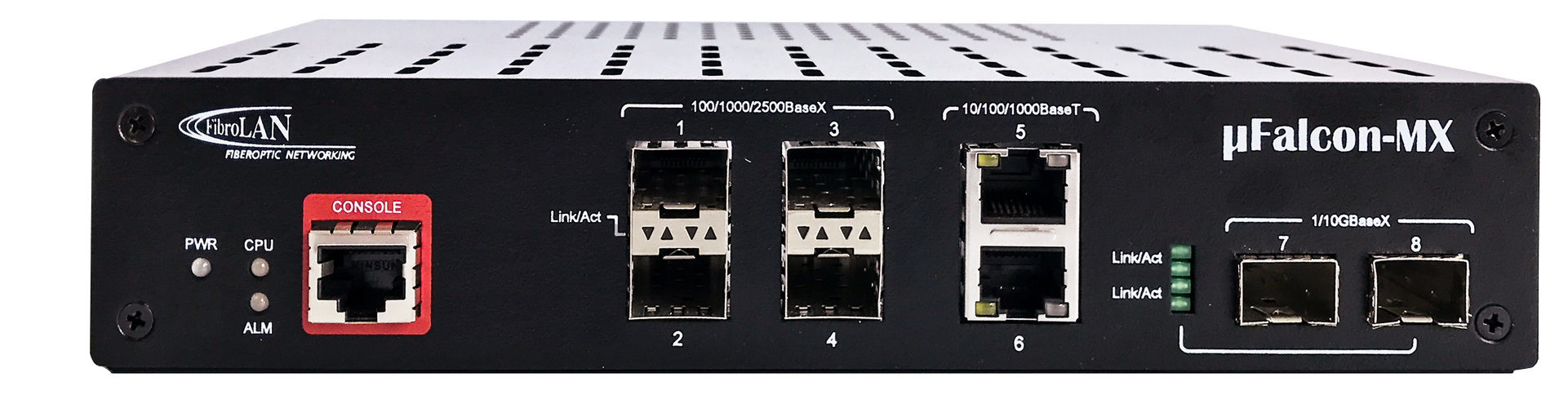

µFalcon–MX

Carrier-grade 10 Gigabit demarcation and local aggregation system

µFalcon-MX is a high performance, 10G service demarcation and local aggregation device that delivers business-class access services in compact form factor, and designed for extended temperature ranges.

Among its unique capabilities is 2.5GE support, providing an intermediate step for high-speed access, and advanced timing functions, benefiting from Fibrolan's Timing portfolio and technology.

10G service aggregation/demarcation unit for business Ethernet and mobile backhaul
Based on 3rd generation Falcon platform with 34Gbps non-blocking throughput
Full set of MEF CE2.0 compliant services
Advanced QoS and service level traffic management
Complete OAM toolbox (802.1ag, Y.1731, RFC2544, Y.1564) for OPEX reduction
Advanced high speed protection mechanisms for link, path, and ring service resilience
2.5Gbps support on optical ports
Layer 3 static routing
Compact, low power consumption, fan-less design

Interfaces & Indicators	4 x 100/1000/2500BaseX (SFP) 2 x 10/100/1000BaseT (RJ45) 2 x 1/2.5/10G (SFP+, Uplink)
Architecture & Forwarding	Hybrid (ASIC-FPGA) HW architecture 256MB RAM, 256MB flash memory L2 forwarding (802.1D MAC bridging) Flow-based forwarding Performance: wire-speed, on all ports, all frame sizes Switching fabric: 34Gbps, non-blocking MTU: 10K bytes MAC table: 16K addresses VLANs: 4K concurrent Provider bridging: 802.1ad (Q-in-Q) Private VLANS L1-L4 ACLs Multicast: IGMPv3 snooping MLD snooping Up to 8K MC groups
Quality of Service	Classification based on L1-L4 information Ingress policing per flow (MEF BW profiles) Two rate, 3-color marking Hierarchical queuing/scheduling Hierarchical shaping Priority based flow control (802.1Qbb) Scheduling: Strict and DWRR (WFQ equivalent) 4 drop precedence levels w/ WRED and tail drop for CA P-bit and DSCP remarking Storm control: UC, MC, BC QoS Control Lists Compliant with 3GPP QoS requirements for LTE backhaul
Protection	Link aggregation: static or LACP Linear protection: G.8031 Ring protection: G.8032v2 Fault propagation Spanning tree: STP, RSTP, MSTP Loop protection
OAM & Diagnostics	IEEE802.3ah link OAM IEEE802.1ag CFM ITU-T Y.1731 PM RFC2544 traffic generator & analyzer (HW based) L2 loopbacks with MAC swap SFP diagnostics (SFF-8472) Traffic mirroring and Remote mirroring Throughput metering sFlow
Management	CLI: Console (RS232), Telnet, SSH1/2 SNMP: v1/v2c/v3, extensive MIBs Web: HTTP/HTTPS Multiple Management VLANsupport IPv6 management RADIUS, TACACS+ 802.1x (port/MAC based) DHCP client & relay (incl. option 82) Link discovery: LLDP Integrated NTP client and Server Text based config files Integrated into the NetACE NMS
Synchronization	Synchronous Ethernet (/G /S models) 8261, G.8262 (/G /S models) ESMC (G.8264, /G /S models) Built-in Stratum 3 clock (/G /S models) 2 x SMA connectors for 1PPS/Clk, in/out (/G /S models) Physical interfaces: (/G /S models) 2 x SMA connectors for 1PPS/Clk, in/out BITS ToD/1PPS GNSS active antenna (5VDC) (/G models) IEEE1588-2008 (PTP): Ordinary Clock (master, slave) Transparent Clock Boundary Clock
Power & Environmental	Internal Power Supply: AC/DC: 100-240VAC, 50/60Hz or 125VDC DC: 20-60VDC,ST connector Power consumption: Maximum: <20W; typical: <15W Passive cooling (fan-less design) Operating temperature: Standard: -10°C ÷ +50°C (14°F ÷ 122°F) Extended: -40°C ÷ +65°C (-40°F ÷ 149°F)

Model	Part #	Description
µFalcon-MX/A	7083	Access Service Gateway, 4x100/1000/2500BaseX (SFP), 2x10/100/1000BaseT, 2x 1/10GE (SFP+), internal AC power supply ,CE SW license
µFalcon-MX/A/ET	7083E	Access Service Gateway, 4x100/1000/2500BaseX (SFP), 2x10/100/1000BaseT, 2x 1/10GE (SFP+), internal AC power supply ,CE SW license, extended temperature range
µFalcon-MX/D	7084	Access Service Gateway, 4x100/1000/2500BaseX (SFP), 2x10/100/1000BaseT, 2x 1/10GE (SFP+), internal DC (20-60VDC) power supply, CE SW license
µFalcon-MX/D/ET	7084E	Access Service Gateway, 4x100/1000/2500BaseX (SFP), 2x10/100/1000BaseT, 2x 1/10GE (SFP+), internal DC (20-60VDC) power supply, CE SW license, extended temperature range
µFalcon-MX/2D	7144	Access Service Gateway, 4x100/1000/2500BaseX (SFP), 2x10/100/1000BaseT, 2x 1/10GE (SFP+), internal DC (20-60VDC) power supply, dual feed, CE SW license
µFalcon-MX/2D/ET	7144E	Access Service Gateway, 4x100/1000/2500BaseX (SFP), 2x10/100/1000BaseT, 2x 1/10GE (SFP+), internal DC (20-60VDC) power supply, dual feed, CE SW license, extended temperature range
FPA40	7108	AC (100-240V) to DC (48V) power adapter, 40W
FPA40/ET	7108E	AC (100-240V) to DC (48V) power adapter, 40W, extended temperature range (-30°C ÷ +65°C)

Notes:

- Specifications are subject to change w/o prior notice
- For a complete list of available Falcon models, please contact Fibrolan
