MetroStar Chassis
The metro star System is a Multi Service Media Access Concentrator

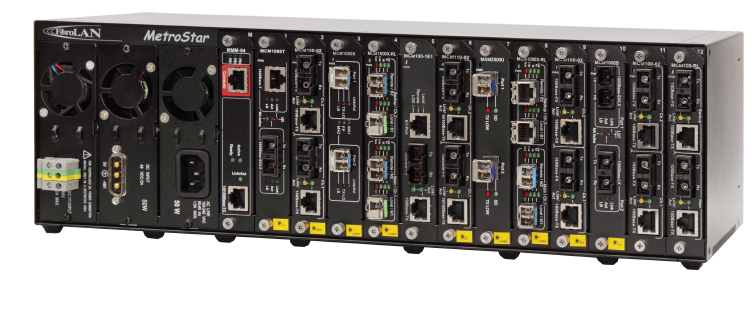

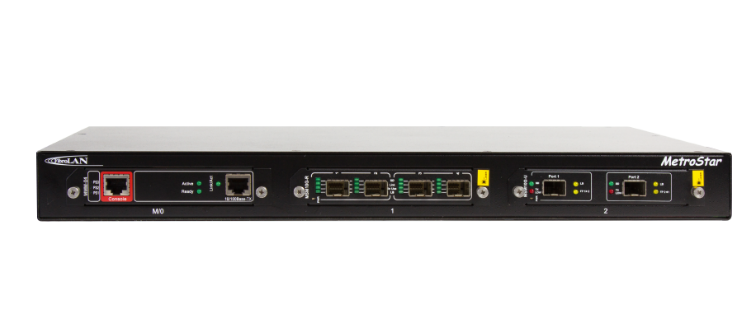

This Carrier Class 19” Rack-Mountable platform is a modular multi-slot and multi-channel Access Concentrator providing up to 48 access channels, housed in a 3RU or 1RU chassis.
- Demarcation point between Service Providers' and Users' Networks
- Ethernet Service OAM to guarantee SLAs Versatile Carrier Ethernet Services
- Supported protocols: TDM/PDH, Ethernet, Fast Ethernet, ATM, Gigabit Ethernet, SAN (Fibre Channel and Escon) , SONET/SDH and 10GE
- Carrier Class – redundant PS,-48VDC PS, all modules (including fans) are hot-swappable. All modules and indicators are -front loaded, no active components on the back-plane and comprehensive alarming
- Cost effective WDM solutions
- TDM (E1/T1) over Ethernet support for backhauling wireless base stations
- Top Density: up to 48 F/O interfaces
- Largest variety of modules (10/100/155/1000/2500/10000Mbps)
- Covered distances: up to 150Km (for 200Mbps rate), 120Km (GBE)
- Light Weight, Space Saving
- MA™ support for remote management (IEEE 802.3ah compliant)- only one agent and one IP address to control hundreds of remote users
- Managed by MetroView Element Manager and by any standard SNMP platform
|
Slots |
3RU: 16 - 3 for Power Supplies, 1 (2) for management and 12 for interface modules 1RU: 5 - 2 for Power Supplies, 1 for management and 2 for interface modules |
|
Management |
Stand Alone and redundant modules , SNMP V1 &V2, Telnet, RS232, TFTP, CLI/Menus, RADIUS, NTP, Syslog MetroView Element Manager |
|
Power-Supplies |
3RU: 2x (third optional) VAC, 50 ÷60Hz or 100 ÷ 240 -48VDC (-36 ÷ -72VDC) PS Load sharing 1RU: 2x VAC, 50 ÷60Hz or 100 ÷ 240 -48VDC (-36 ÷ -72VDC) PS Load sharing |
|
Temperature |
Operating: 0˚ ÷ +45˚C Storage: -20˚ ÷ +80˚C |
|
Safety |
ICE EN60950-1:2001 |
|
NEBS |
compliant |
|
Cooling |
Forced air, fans integrated in Power Supplies, hot swappable |
|
OAM |
Remote devices are managed via MA™ or IEEE 802.3ah |
|
Power Consumption |
3RU: 120 Watts maximum 1RU: 40 Watts maximum |
|
Humidity |
10% ÷ 90% non-condensing |
|
EMC |
EN 300 386 V1.3.3:05 |
|
Weight |
3RU: 7 kg max. (fully loaded) 1RU: 3.8 kg max. (fully loaded) |
|
Dimensions |
3RU: 132x441x210mm (HxWxD) 1RU: 45x445x303 mm (HxWxD) |
|
Model |
Part # |
Description |
|
MS-CH/A |
2100 |
MetroStar Chassis, 3U, 16 slots, including 2 AC Power Supplies+6*BP-01, 1*BP-02, 19" Rack-mount bracket set |
|
MS-CH/D/ST |
2110 |
MetroStar Chassis, 3U, 16 slots, including 2 DC Power Supplies (screw terminal connector), 6*BP-01, 1*BP-02, 19" Rack-mount bracket set |
|
MS-CH/00 |
2109 |
MetroStar Chassis, 3U, 16 slots,6*BP-01, 1*BP-02, 19" Rack-mount bracket set |
|
MS-CH1/A |
2133 |
MetroStar chassis, 1U, 3 slots, including 1 AC power supply (FPS5033A), 1*BP-01, 19" rack-mount bracket set |
|
MS-CH1/D/ST |
2114 |
MetroStar chassis, 1U, 3 slots, including 1 DC power supply), 1*BP-01, 19" rack-mount bracket set |
|
MS-CH1/00 |
2115 |
MetroStar chassis, 1U, 3 slots, 1*BP-01, 19" rack-mount bracket set |
