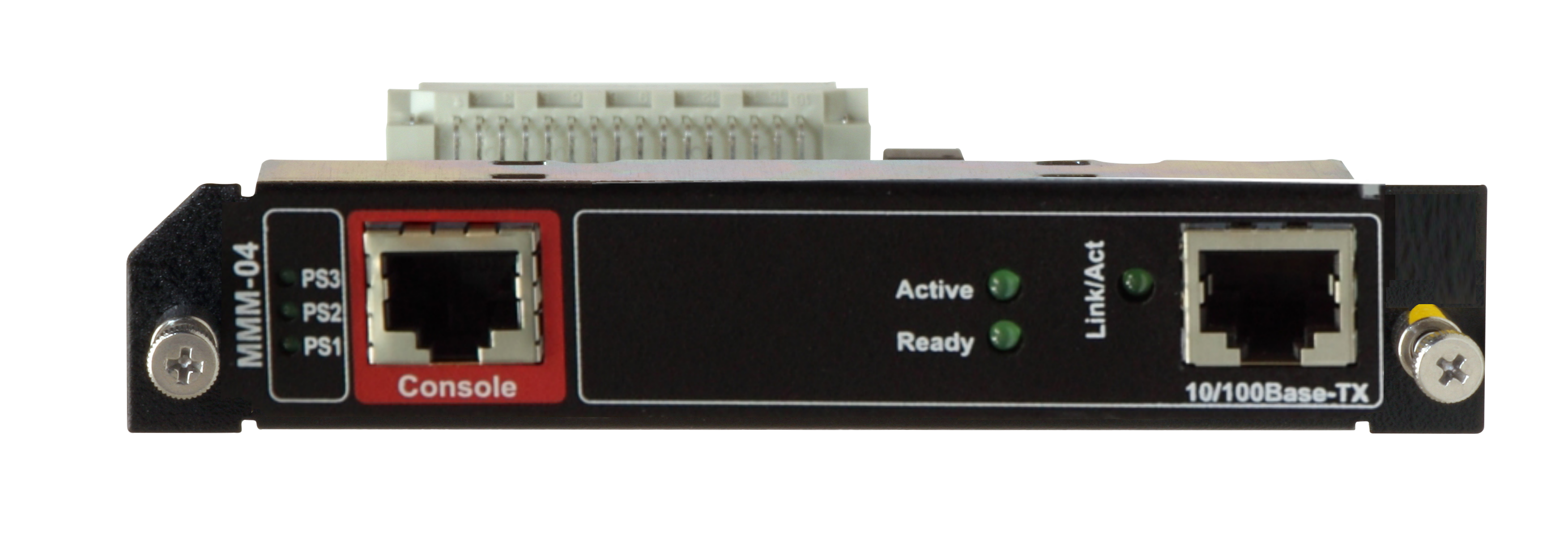

MMM-04
Manages the various modules and the remotely connected CPEs/NTUs
MMM-o4 supports Web management ,SNMP, CLI via Console, Telnet, SSH and FTP, TFTP for easy field upgrades. The management module automatically recognizes the type of module inserted in each MetroStar slot and enables the relevant menus, no HW setup is needed while installing.
- User friendly interface
- CLI (console, Telnet, SSH), SNMP and HTTP/S
- Single slot, hot swappable
- Linux operating system
- Management of all MetroStar modules and remote CPE/NTU devices
- Auto-configuration for all MetroStar modules
- Remote software upgrade, with zero downtime
| OS |
Embedded Linux operating system |
| Standards Compliance | SNMP v1/v2c/v3, MIB II (RFC1213/RFC1215), Host resources MIB (RFC2790), Telnet, SSH v1/v2, FTP/TFTP client, RADIUS, TACACS+ Syslog and Local Logging, NTPv4, IPv6, DHCP |
| RJ-45 Ports | Shielded, 10/100BaseTx, 100m over UTP/STP Cat 5 cable, Network connection port, Console port for CLI, Cisco compatible |
| Diagnostic LEDs | System Ready state System Active mode Management network interface up state System PS section: PS1, PS2, PS3 |
| System Information | Power Supply status (1 to 3), Up Time, System Contact, Location, Name Modules Population, Chassis and Remote Devices Temperature Modules and Remote devices Firmware revision |
| Supported Modules | MCM 100-0x, MCM 110-0x, ACM110-1x, MSM100U, MCM1000T, MCM1000S, MSM2500/4000U, MCM100-xE1/T1, MCM100-RL, MCM1000X-RL, MCM1000X, WDM modules: MDX, FADM, MDDX. FADDM |
| Supported CPEs | H.CON/MA, LTA41/MA, LTA41-xE1/T1, F.CON1/MA, F.CON1F/MA, GSM1000/MA, GSM1010/MA, GSM1000X, ATARA100 |
|
Model |
Part # |
Description |
| MMM-04 | 2124 | Advanced Management Module for one MetroStar System |
